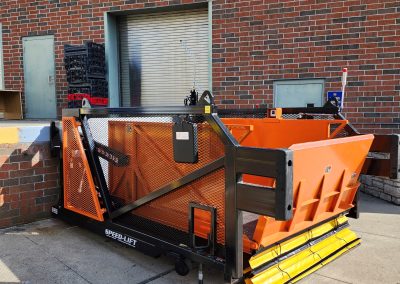

The CrossDock™ Speed-Lift operates as a combination lift & “leveler” as it can go from truck/dock height on one end (44.5″-58” standard) to any height (0-58”) on the other end. One end has an automatic ramp (the “bridge”) and the other end has a hydraulic ramp with additional truck bumpers. It can be used as your dock or up to a dock and is designed to handle truck impacts on both ends.
Features & Benefits
- Surface-mounted and self-contained – mechanical, hydraulic, and electrical systems are within the frame so no separate control unit is required.
- Integrated truck impact protection – robust construction and padded bumpers – requires no bollards.
- Fast operation – raise/lower at 33FPM – Truck height in only 8 seconds.
- Less costly on‐site infrastructure – no pits, drains, bollards, building permits, etc.
- Automatic Folding Ramp & Adjustable Bridge – built-in safety. No safety bars, chains, or flip-over ramps.
- Cantilever lift mechanism – hydraulically actuated with variable speed control for controlled ascent and descent.
- Simple installation – simply place, anchor, and connect to power.
- Moveable – integrated wheels add maneuverability, if needed.
- Load Capacity of 6,000 or 8,000 LB
- No end-load or side-load limitations – full-load rating across platform
- Low-profile – 3 5/8” (6000), 3 7/8” (8000)
- Leading Warranty – 15-Year Structural, 5-Year Parts, 2-Year Labor
- UL approved electrical control boxes
- Conforms to ANSI MH29.1 specifications
- Non‐skid diamond plate on the platform, ramp, and bridge.
- Withstands severe weather conditions – operates for 25+ years with routine maintenance.
Short Form Specifications
- Capacity: 6,000 or 8,000 pounds
- Install Locations: Outside or Inside
- Primary Configs: Truck to ground, Dock to ground, Truck to ground-thru wall
- Axle Capacity Ends, Sides: Same
- Standard Platform Sizes (in feet WxL): 5×7, 5×8, 5×10, 6×7, 6×8, 6×10, 7×8, 7×10, 8×8, 8×10
- Lowered Height: 3 5/8” (6000), 3 7/8” (8000)
- Truck-side Adjustable Height Bridge: 44.5-58”
- Motor Size: 5 HP (6K model), 8HP (8K model)
- Cylinder Size: (2) 5” cylinders
- Travel Speed: 33 FPM – 8 seconds from truck height to ground
- Shipping Weight: 3,650 to 5,350 LB
OPTIONS & ACCESSORIES
- WeatherShield or CoverDock system
- Extended Ramps and Truck Bridge
- Low-profile Platform – 1 ¾” (6K model only)
- Lateral Track Mobility
- Modified Adjustable Height Bridge – as low as 11” and high as 70”
- Extended and Remote Control Handles
- Tapered Ramp and Truck Bridge
- Platform Stops for off‐loading to raised platforms
- Upper Travel Limit
- Side Frame Enclosure
- Accordion Safety Curtain
- Keyed Lock Out
- Motion Warning Indicator
- Tow Bar
- Side‐Off Automatic Ramps (Available on ‘B’ lengths and longer)
- Upper Level Personnel Restraint Bar
- Smooth Deck
- Various Anchor Systems
- 208V 3-Phase Power, 230V 3-Phase Power, 460/480V 3 Phase Power, or 208V Single Phase Power
- Custom Sizes, Capacities and Travel Available.
