Transport your loading dock anywhere with Superior’s innovative MobileDock™ Speed-Lift. Say goodbye to the limits of infrastructure or electricity. With the MobileDock, you can safely load/unload trucks or cross-dock anywhere. You can also use it when your dock or lift is down to keep your operations going.

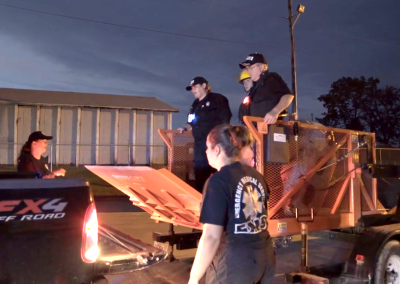

The MobileDock has applications across many sectors: emergency management, military operations, construction, agriculture, delivery, lumper services, city/county services, campus operations, and more.
Features & Benefits
- Street-Legal & Towable – diesel-powered and certified for road use, it’s ready to be towed to any site by a standard truck or SUV
- 6,000-pound Capacity – substantial capacity with a large 54”W x 96”L platform
- Fully self-contained – mechanical, hydraulic, electrical, and fuel systems are within the frame so no separate control unit or power is required
- Integrated truck impact protection – robust construction and padded bumpers – requires no bollards.
- Fast operation – 24.0 FPM or 12 seconds from truck to ground
- Automatic Folding Ramp (AFR) & Adjustable Bridge – built-in safety. No safety bars, chains, or flip-over ramps.
- Detachable AFR – leave the ramp open for both cross-docking and utility lifting without having to detach lift from the tow vehicle
- Cantilever lift mechanism – hydraulically actuated with variable speed control for controlled ascent and descent.
- Also a trailer – can transports up to 2,000 LB
- No end-load or side-load limitations – full-load rating across platform
- Low-profile – 4”
- 1-year parts & labor warranty
- UL approved electrical control boxes
- Non‐skid diamond plate on the platform, ramp, and bridge
- Withstands severe weather conditions
- Fully compliant with ANSI standards and NATM-certified for towing, it also meets all US Federal Motor Vehicle Safety Standards (FMVSS) applicable as of its manufacturing date
Short Form Specifications
- Capacity: 6,000 pounds across the entire platform when stationary
- Cargo Carrying Capacity: 2,000 pounds when towed
- Platform Size: 4.5’ x 8’
- Lowered Height: 3 5/8”
- Motor Size: Diesel – 10HP Hatz 1B50 or Hybrid Diesel/230V 1-phase electric
- Cylinder Size: (2) 5”
- Travel Speed: 24.0 FPM or 12 seconds from truck to ground
- Adjustable Lifting Height: 44.5” to 58”
- Hitch Configuration: 3” Pintle Hook/Lunette Ring
- Gross Weight: 5,100 pounds
- Brakes: Electric Self-Adjusting Drum Brakes with Trailer Breakaway System
- Tires: ST225/75R15 Radial
- Hydraulic Fluid: Dexron III/Mercon Multi-Purpose ATF
- Lighting System: LED stop, turn and side lights meet FMVSS 108
- Electrical Connection: 7-Way Round Plug Connector – Trailer End
OPTIONS & ACCESSORIES
- Tapered Ramp and Truck Bridge
- Smooth Deck
